Material Overview: Understanding Duplex Structures

Duplex stainless steels represent a specialized class of alloys engineered to combine the most desirable
characteristics of both austenitic and ferritic steels. This unique dual-phase microstructure consists of
approximately equal proportions of austenite and ferrite. Consequently, these materials provide significantly
higher mechanical strength and superior resistance to stress corrosion cracking (SCC) compared to standard
austenitic grades like 304 or 316L.

Within this category, Duplex 2205 (UNS S32205 / S31803) stands as the workhorse grade, accounting for the vast majority of standard duplex applications. However, demanding environments requiring enhanced load-
bearing capacity and extreme localized corrosion resistance call for Super Duplex 2507 (UNS S32750). Super Duplex alloys are characterized by higher alloying content, specifically optimized to perform reliably in
severe chemical and marine environments.

Chemical Composition and Pitting Resistance (PREN)

The primary performance variations between Duplex 2205 and Super Duplex 2507 stem directly from their
chemical formulations. Super Duplex 2507 contains elevated levels of Chromium (Cr), Molybdenum (Mo), and
Nitrogen (N), which significantly increases its resistance to localized attack.
A key metric used to quantify this resistance is the Pitting Resistance Equivalent Number (PREN), calculated
via the standard formula:


As a rule of thumb, materials with a PREN value above 40 are classified as "Super Duplex," designating their ability to withstand highly acidic and high-chloride process streams where standard duplex steels might succumb to pitting and crevice corrosion.

Mechanical Properties: Why 2507 Delivers Higher Strength

When mechanical design constraints demand weight reduction or higher operating pressures, Super Duplex 2507 offers distinct advantages. Due to its advanced solid-solution strengthening from increased nitrogen and chromium content, 2507 exhibits substantially higher yield and tensile strength than 2205.

Yield Strength: Super Duplex 2507 provides roughly a 20% to 30% increase in yield strength over Duplex 2205, allowing engineers to design thinner wall sections for pressure vessels and piping systems.
Tensile Strength: The ultimate tensile threshold of 2507 is significantly higher, ensuring extreme durability under high mechanical loads.
Ductility and Impact Toughness: Despite its high strength, 2507 retains excellent impact strength at sub-zero temperatures, though both grades are subject to embrittlement if exposed to prolonged temperatures above 300°C.

Core Industrial Applications

Choosing between these two grades depends on balancing process chemistry, mechanical stress, and overall project lifecycles. Here are the primary sectors where Super Duplex 2507 is preferred over Duplex 2205:

Chemical Processing Industry & Pressure Vessels

In modern chemical plants, reactors and containment systems frequently process aggressive organic and inorganic acids. While Duplex 2205 functions well under moderate chemical exposures, Super Duplex 2507 is essential for high-concentration chloride environments and high-pressure vessels, preventing catastrophic failures and minimizing unscheduled plant shutdowns.

Industrial Heat Exchangers & Condensers

Thermal management systems utilizing brackish water, seawater, or highly contaminated industrial wastewater as a cooling medium require exceptional resistance to thermal localized corrosion. Super Duplex 2507 heat exchanger tubes maintain structural integrity without suffering from thermal-induced pitting, outperforming traditional nickel alloys on a cost-per-performance basis.

Oil & Gas and Marine Infrastructure

Subsea piping, offshore platforms, and coastal desalination infrastructure face relentless exposure to high-pressure marine environments. Super Duplex 2507 fittings, flanges, and structural profiles offer the required yield strength to withstand deep-sea pressures while preventing chloride-induced stress corrosion cracking.

Manufacturing Specifications and Supply Scope

To support global infrastructure procurement, high-quality industrial components are manufactured to strict international testing standards, ensuring full material traceability. Supply configurations encompass a broad scope of product forms tailored for commercial projects:

Plates, Sheets, & Coils: Ranging from heavy-gauge hot-rolled plates for structural vessel fabrication to precision cold-rolled sheets.
Pipes & Tubes: Available in seamless configurations for high-pressure lines or welded configurations for large-diameter distribution networks, adhering to ASTM A789, ASTM A790, and EN 10216-5.

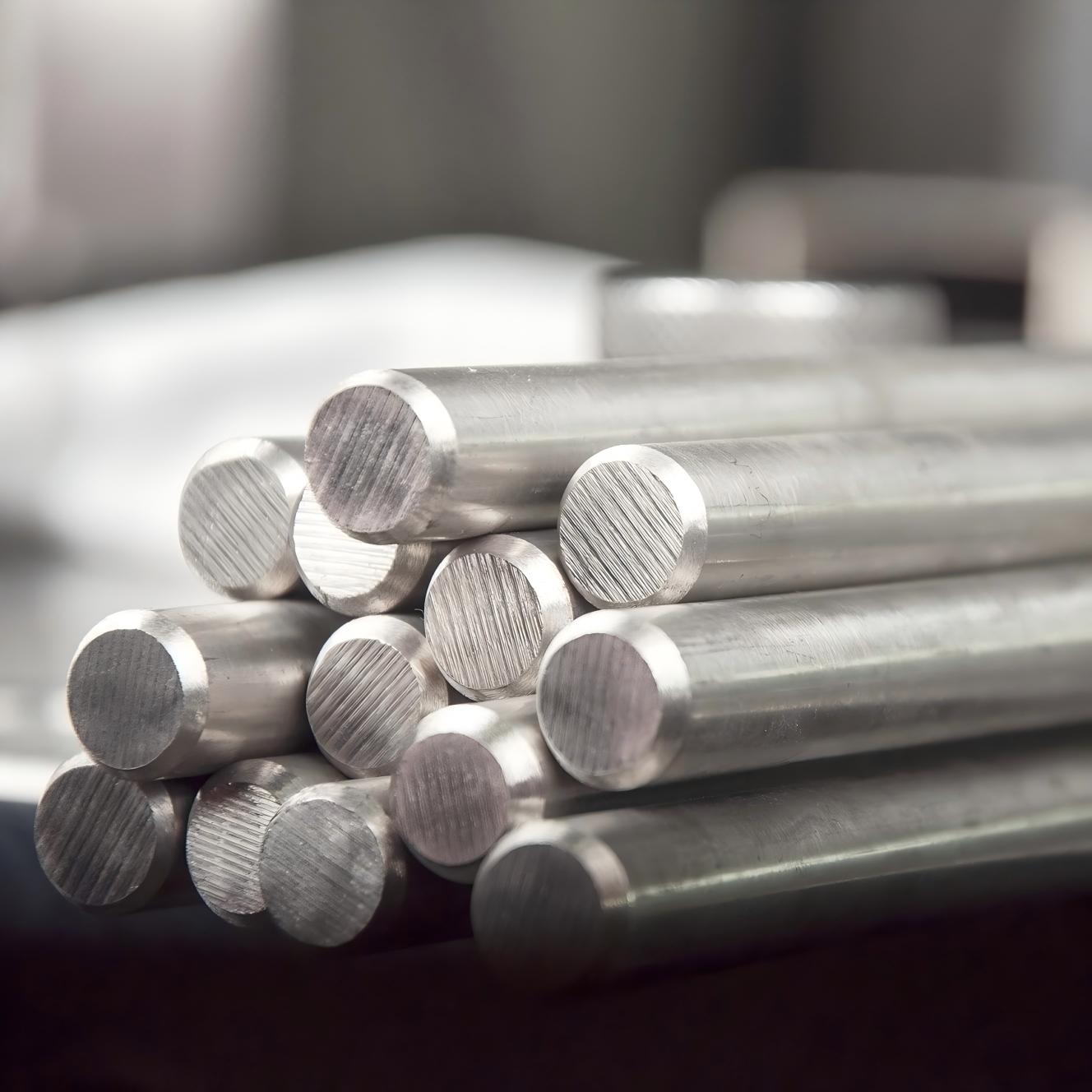

Bars, Rods, & Profiles: Engineered for precision machining, fastening systems, and structural framing.
Fittings & Flanges: Forged components ensuring leak-free connections in critical piping networks under ASTM A182 specifications.

China Manufacturing & Global Export Advantages

Sourcing Duplex and Super Duplex materials from an established China factory provides international buyers with a strategic combination of technical precision and supply chain reliability. Modern Chinese metallurgy combines advanced vacuum induction melting (VIM) and argon oxygen decarburization (AOD) refining with rigorous quality control workflows to eliminate trace impurities and optimize phase balance.

With comprehensive customization capabilities, production runs can be precisely tailored to specific project tolerances, dimensions, and surface finishes (e.g., No. 1, 2B, or polished). Backed by extensive export experience, logistical operations ensure smooth compliance with international customs, secure sea-freight packaging, and complete material certification dossiers (including EN 10204 3.1 mill test certificates), securing long-term performance for global industrial operations.

FAQ

Q1: Can Super Duplex 2507 replace Duplex 2205 in all applications?
A1: Mechanically and chemically, yes. However, Super Duplex 2507 is more expensive and requires more precise parameters during welding and fabrication due to the risk of intermetallic phase formation. It should be selected when process conditions exceed the limits of 2205.

Q2: What is the primary indicator that I need to upgrade from 2205 to 2507?
A2: An upgrade is typically necessary if your process involves operating temperatures above 60°C in high-chloride environments (such as seawater), or if the system pressure requires mechanical strength beyond the yield limits of Duplex 2205.

Q3: How does the machinability of 2507 compare to 2205?
A3: Due to its higher strength and work-hardening rate, Super Duplex 2507 is more challenging to machine than Duplex 2205. It requires rigid tooling setups, sharp cutting edges, and optimized feeds and speeds to prevent tool wear.

Q4: Are there temperature limits for utilizing these duplex grades?
A4: Yes. Both Duplex 2205 and Super Duplex 2507 are generally restricted to service temperatures below 300°C (approx. 572°F). Exposure to temperatures above this range triggers microstructural embrittlement, reducing toughness.
